Model No.Elo 5-Wire Resistive

Resolution (pixel)1280 x 1024 SXGA

Display Colors16.2 M (6-bit with FRC)

Contrast Ratio700 : 1

Operating Conditions

Touch ScreenCapacitive & Surface Acoustic Wave

Temperature-20°C - 60°C

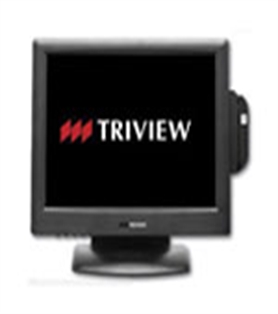

Model No.TS17R-01
TS17R-MU01 (includes MSR)

Display type17" active matrix TFT LCD panel

Aspect Ratio5 : 4

Brightness without touch screen300 cd/m² typical

Brightness with touch screen240 cd/m² typical

Response Time6 ms

H Frequency input Range30 KHz - 80 KHz

V Frequency input Range50 KHz - 75 KHz

Viewing AngleL/R 160°, U/D 160° Power, Auto/Exit, Menu/Enter, Plus, Minus

Front Panel ControlsBrightness, Contrast, Auto Adjust, Phase Adjust

OSD ControlsClock, H. Position, V. Position, Sharpness Color Temperature, Language, OSD H/V Position, Volume, Recall

TOUCH SCREEN

Touch Screen OptionsCapacitive & Surface Acoustic Wave

CARD READER

MSROptional (TS17R-M)

Temperature0°C - 45°C

PHYSICAL FEATURES

Dimension (H x W x D) include base15.8" x 15.0" x 9.5"

Display Area (W x H)13.3" x 10.6"

Weight (Net)15.5 lbs.

Video cable connectorAnalog: 15-pin-D-SUB Digital: DVI (Option w/ MOQ)

Audio Line in3.5mm earphone jack

Touch Screen ControllerDual Controller (USB & RS232) ELO resistive

Card Reader6 Pin mini DIN or RS232

Power Supply12V DC Power Supply (external)

Power SavingVESA DPMS Standard

Power Consumption< 40W Normal operation

Mounting OptionsVESA mounting compatible, 100mm

Agency ApprovalsUL/cUL, CE, FCC B

Humidity20% - 80%
